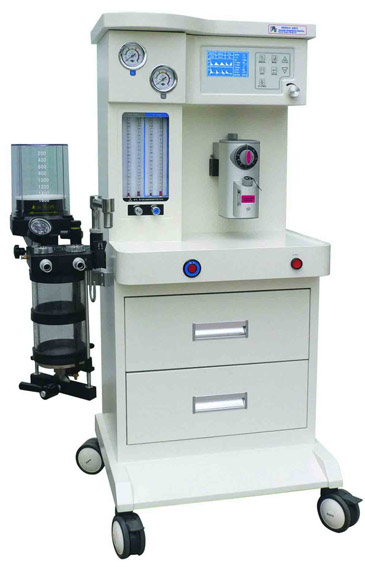

Special Feature

Display: 5.5'SNT screen
Patient type: Adult, Pediatric
Driven mode: Pneumatically driven electronically controlled
Mode: Semi-open, Semi-closed or closed system
Anesthetic vaporizer: Two high precise vaporizers
Power supply: 220V+/-10%, 50Hz+/-1Hz
110V+/-10%, 60Hz+/-1Hz
Iternal battery: DC12V (over for 2 hours)
Power consumption: Not more than 50W

Anesthesia Ventilator

Respiration mode: IPPV, SIMV, SIGH, MANUAL
Waveform: P-t, V-t
Tidal volume: 0.50ml~1600ml
Respiratory frequency: 1 to 65 BPM
I: E ratio: 8: 1~1: 8

Alarm parameters:
High pressure alarm, Low pressure alarm, O2 source failure alarm, AC power failure alarm
High Pressure alarm limit: 20~60CMH2O Low Pressure alarm Limit: 0~20CMH2O
Monitor Parameters: Tidal volume, MV, Ppeak, PEEP, respiratory frequency, I: E ratio
Safety valve pressure limit: 6Kpa
Good air tightness, high reliability and minor respiration impedance

Main Units

Circle absorber: Compact circle absorber
Flow meter:
O2, N2O four-tube flow meter
O2 tube: 0L/min-1L/min~10L/min.
N2O tube: 0L/min~1L/min~10L/min
O2 and N2O Linkage Device: Adjust O2 and N2O in proportion (keep O2 concentration not lower than 25%)
Oxygen flush: 25L/min~75L/min

Gas source pressures:
O2: 0.25Mpa~0.65MPa. N2O: 0.25Mpa~0.65MPa.
Gauge: Two gauges, N2O, O2

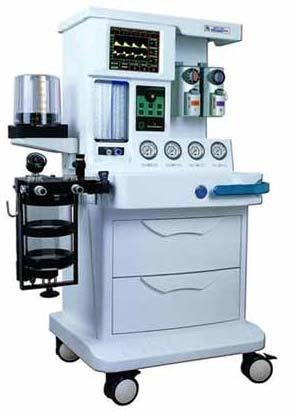

   Special Feature


   Patient type: Adult, Pediatric

   Driven mode: Pneumatically driven electronically controlled

   Mode: Semi-open, Semi-closed or Closed system

   Anesthetic vaporizer: one vaporizer

   Power supply: 220v±10%, 50Hz±1Hz

110v±10%, 60Hz±1Hz

   Power consumption: ≤50W

   Internal battery: DC12V (4 working hours)

   Anesthesia ventilator

   Respiration mode: IPPV, SIMV, SIGH, MANUAL

   Display: 5.5’ SNT screen

   Waveform: P-t, V-t

   Tidal volume: 50ml~1600ml

   Respiratory frequency: 1~65BPM

   I:E ratio: 8:1~1:8

   Alarm parameters:

   High pressure alarm, Low pressure alarm, O2 source failure   alarm

   High pressure alarm limit: 20~60cmH2O

   Low pressure alarm limit: 0~20cmH2O

   Monitor parameters: Tidal volume, MV, Ppeak, PEEP, respiratory frequency, I:E  ratio, Airway pressure

   Safety valve pressure limit: 6 Kpa

   Good air tightness, high reliability, and minor respiration impedance

   Main unit

   Circle absorber: compact circle absorber

   Bellow: 0~1600ml

   Flow meter:

O2, N2O four-tube flow meter

O2 tube: 0L/min~1L/min~10L/min

N2O tube: 0L/min~1L/min~10L/min

O2 and N2O Linkage Device, Adjust O2 and N2O in proportion (keep O2 concentration not lower than 25%)

   Oxygen FLUSH: 25L/min~75L/min

   Gas source pressure:

O2: 0.25Mpa~0.65Mpa

N2O: 0.25Mpa~0.65Mpa

   Gauge: Two gauges,N2O, O2


Advanced Technology, Modular Design, Open architecture, Ease of use

Integrated AHD with basal flow
Integrated ventilator with CMV, PCV & SIMV modes
Twin Selectatec Mounting for Agent Specific Vaporiser
Pin Indexed Yokes two for O2 & one for N20
NIST inlets for piped medical gases
Single Bi-stable System ON / OFF Switch for gases & power supply
Backlit Low Flow Flowmeters
Pull out writing table
Common Gas Outlet
Open to close change over switch for convenient switchover from open to closed system
Suitable for Open, semi-open & closed circuit system application.
Electrical Outlets.
Extensive range of excellent accessories.

Patient Safety Features

Anti Hypoxic Device allows a minimum of 25 % O2 at all times and cuts of N20 supply if O2 Fails.
Audio Visual Alarm for Oxygen Failure.
Oxygen Flush 35 To 70 Lpm Oxygen Flow.
System Pressure Relief at 125 cmH20.

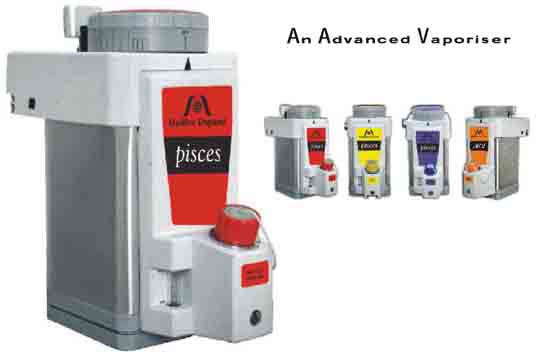

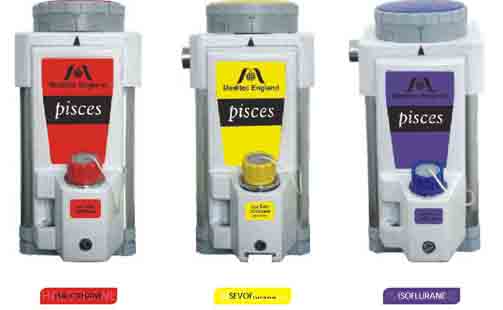

Vaporiser
Calibration range: 0 to 5% and 0 to 8% using a Laser refractometer.
Easy to turn dials for Safety Lock to prevent accidental turn on.
Agent specific vaporisers designed to provide constant output.
Available Screw fill, Keyfill or Quik fill
Interlock mechanism to lock in series with other Vaporisers.
Individually calibrated for each Specific Anesthetic Drug.
Agent Capacity: 250 ± 25ml
Available for Halothane, Isoflurane, Sevoflurane and Enflurane

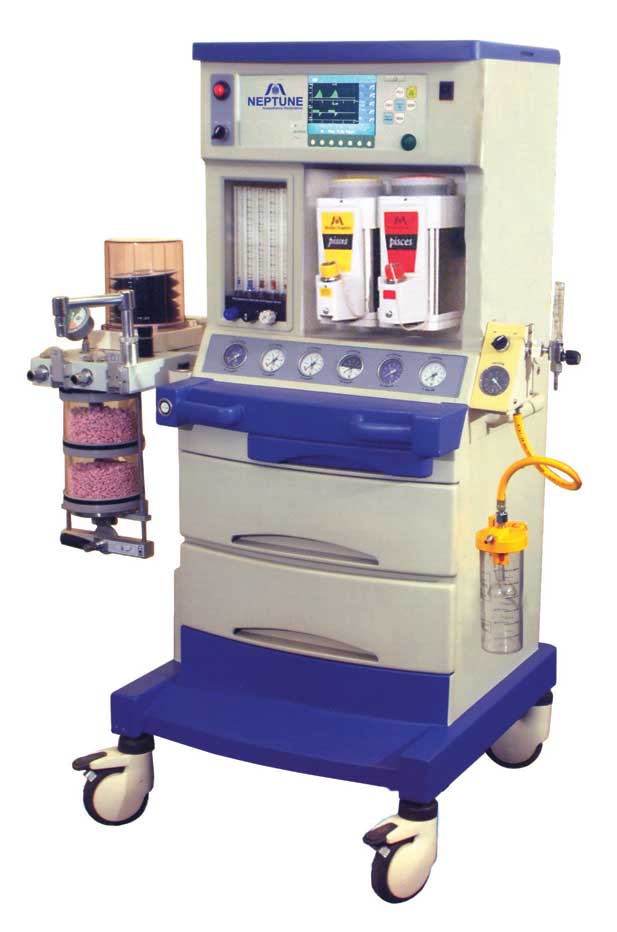

Meditec Integrated Ventilator ( Made in England )
Meditec Neptune has an integrated microprocessor based sophisticated ventilator incorporating simplicity with all the advantages of a modern ventilator.
It provides optimum patient care. It has an inbuilt battery backup in case of mains failure.

Features
Suitable for adult and pediatric
High-luminance and wide visual angle TFT LCD display of 6.4"
CMV, PCV, SIMV and Manual ventilation modes
Accurate differential pressure flow sensor
2 hrs. Internal battery back-up
Combines sophistication and ease of use
Com-Wheel Control
Electronic PEEP
Leakage & compliance test
Monitoring Parameters (Measured Values)
V To Frequency, FiO;b P peak' MV, PEEP
Waveforms
Flow-Time waveform, Volume-Time waveform, Flow- Volume loop (optional), Volume-Pressure loop (optional)
Setting Parameters
VT (Tidal Volume), Frequency, I:E, TiP (Inspiratory pause time), P maxs PEEP, Vsens (Triggering flow sensitivity)
Alarm Parameters
Continuous positive airway pressure, Airway pressure (high & low), Fi02 (high & low), MV (high & low), VT (high & low), Frequency (high & low), Apnea, AlC failure, Battery low, Self-test failure
MODES
CMV : Constant mandatory ventilation is possible from all standard circuits.
PCV  : Time cycled pressure ventilation can be selected in both adult and paediatric mode to provide optimum pressure control. This is of particular advantage when ventilating paediatrics, as volume can be lost when using non-cuffed tubes.
SIMV : Choosing SIMV minimises patient reluctance to accepting mechanical breaths by ventilating in harmony with the patient's own attempts to breathe.
